1. Introduction and History
The 12DT8 is a miniature dual triode vacuum tube that was developed during the golden era of vacuum tube technology in the mid-20th century. Introduced in the late 1950s, the 12DT8 was designed primarily for use in FM radio receivers and other audio applications. It belongs to the 12-volt heater series of tubes, which were particularly popular in automobile radios and equipment that operated from 12-volt power supplies.

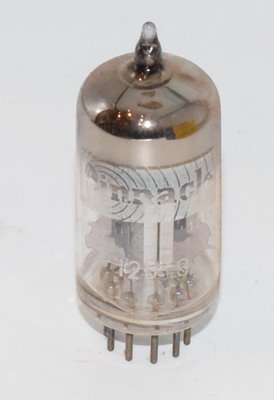

The tube was manufactured by several prominent companies including RCA, Sylvania, and GE during the peak of vacuum tube production. The Pinnacle brand also produced the 12DT8, with New Old Stock (NOS) versions occasionally available to collectors and audio enthusiasts today, typically without their original packaging.
While not as widely recognized as some other dual triodes like the 12AX7 or 12AU7, the 12DT8 found its niche in specific applications where its particular electrical characteristics were advantageous.
2. Technical Specifications and Design
The 12DT8 is a 9-pin miniature dual triode with the following key specifications:
- Heater Voltage: 12.6V (series) or 6.3V (parallel)
- Heater Current: 150mA (series) or 300mA (parallel)
- Plate Voltage (max): 330V
- Plate Dissipation (max): 1.8W per section
- Transconductance: Approximately 5,800 μmhos per section
- Amplification Factor (μ): Approximately 20
- Plate Resistance: Approximately 3,450 ohms
- Base: 9-pin miniature (B9A)
The 12DT8 features two medium-mu triode sections in a single envelope. What makes the 12DT8 somewhat distinctive is that its two triode sections are not identical—they have slightly different characteristics optimized for different functions in FM receiver circuits. One section was typically used as an FM detector while the other served as an audio preamplifier.
The pin configuration is as follows:
- Pin 1: Plate (Section 1)
- Pin 2: Grid (Section 1)
- Pin 3: Cathode (Section 1)
- Pin 4: Heater
- Pin 5: Heater
- Pin 6: Plate (Section 2)
- Pin 7: Grid (Section 2)
- Pin 8: Cathode (Section 2)
- Pin 9: Internal Connection
3. Applications and Usage
The 12DT8 was primarily designed for and used in the following applications:
FM Radio Receivers
The most common application for the 12DT8 was in FM radio receivers, where one section would be used as part of the FM detector circuit (often in a ratio detector configuration) and the other section would function as an audio preamplifier. This dual functionality made the tube particularly efficient for compact FM radio designs.
Audio Preamplifiers
The medium-mu characteristics of the 12DT8 made it suitable for audio preamplifier stages in various electronic equipment. Its gain was sufficient for line-level signals while maintaining good linearity.
Automobile Radios
With its 12.6V heater rating, the 12DT8 was well-suited for automobile radio applications where 12V DC power was readily available.
Phase Inverters
Some audio amplifier designs utilized the 12DT8 as a phase inverter to drive push-pull output stages, taking advantage of its dual triode configuration.
4. Equivalent or Substitute Types
While the 12DT8 has some unique characteristics, several tubes can serve as potential substitutes depending on the application:
- 6DT8: The most direct equivalent, identical to the 12DT8 except for its 6.3V heater (designed for parallel heater operation).
- 12AT7/ECC81: Can substitute in some applications, though it has a higher amplification factor (μ ≈ 60) and different plate resistance.
- 12AV7: Another medium-mu dual triode with somewhat similar characteristics.
- 12AU7/ECC82: Has a lower amplification factor (μ ≈ 17) but can work in some applications where the 12DT8 is used.
- 6CG7/6FQ7: Although having a different pinout and 6.3V heater, these can sometimes substitute for the 12DT8 with circuit modifications.
When considering substitutions, circuit modifications may be necessary to accommodate differences in gain, plate resistance, and pinout. Direct substitution without circuit adjustment may lead to suboptimal performance or potential issues.
5. Notable Characteristics
The 12DT8 possesses several notable characteristics that distinguish it from other dual triodes of its era:
Dissimilar Triode Sections
Unlike many dual triodes that feature identical sections, the 12DT8's sections have slightly different characteristics optimized for their respective functions in FM receiver circuits.
Low Noise Performance
The 12DT8 exhibits relatively low noise characteristics, making it suitable for preamplifier applications where signal-to-noise ratio is important.
Versatile Heater Configuration
The heater can be wired for either 12.6V at 150mA (series) or 6.3V at 300mA (parallel), providing flexibility in power supply design.
Compact Design
As a 9-pin miniature tube, the 12DT8 offers space-saving advantages over larger octal-based tubes while providing dual triode functionality.
Collectibility
While not among the most sought-after tubes by collectors, Pinnacle NOS (New Old Stock) 12DT8 tubes without boxes are occasionally valued by vintage audio enthusiasts and restorers of classic FM radio equipment.
Sound Characteristics
When used in audio applications, the 12DT8 is noted for its warm, balanced sound with moderate gain that doesn't overly color the signal. This makes it particularly suitable for preamplifier stages where transparency is desired.
In conclusion, the 12DT8 represents a specialized dual triode designed primarily for FM radio applications but versatile enough for various audio circuits. While not as ubiquitous as some other dual triodes, it remains an interesting tube for collectors and those restoring vintage equipment from the vacuum tube era.
