Introduction and History

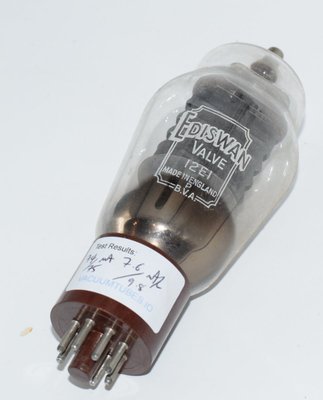

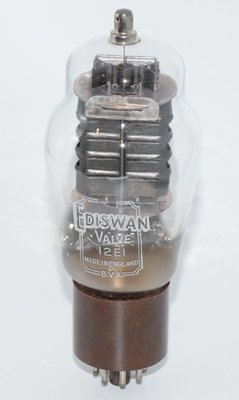

The 12E1 is a robust indirectly heated beam tetrode manufactured by Associated Electrical Industries Limited (AEI) under the Ediswan brand. First documented in the December 1961 datasheet (Issue 1), the 12E1 was originally designed for use as a series or shunt control valve in stabilised power packs — essentially a voltage regulator tube for professional and industrial power supply applications. Its military equivalent is the CV345, indicating that the tube met stringent British military specifications and saw use in defence electronics.
The 12E1 belongs to a family of high-current beam tetrodes that were engineered for reliability and the ability to handle substantial current flow with low voltage drop — ideal characteristics for series-pass regulation. The tube features a top-cap anode connection, an International Octal base, and a clear glass bulb that allows visual inspection of the internal structure during operation. While it was never intended as an audio amplification device, the 12E1 has been discovered and adopted by the DIY audio community, where its high transconductance, generous power handling, and rugged construction have made it a fascinating candidate for single-ended and push-pull amplifier designs.
Manufactured in England, the 12E1 was produced in significant quantities for both civilian and military applications. Today, NOS (New Old Stock) examples from Ediswan remain available, often found with original military markings or AVO test results, and they have become sought-after by audio experimenters looking for affordable, high-quality beam tetrodes with unique sonic characteristics.
Technical Specifications and Design
Absolute Maximum Ratings
| Parameter | Symbol | Value |
|---|---|---|
| Heater Voltage | Vh | 6.3 V |
| Heater Current | Ih | 1.6 A |
| Maximum Anode Voltage | Va(max) | 800 V |
| Maximum Screen Voltage | Vg2(max) | 300 V |
| Maximum Control Grid Voltage | Vg1(max) | −100 V |
| Maximum Voltage between g1 and g2 | Vg1−g2(max) | 400 V |
| Maximum Anode Dissipation | Pa(max) | 35 W |
| Maximum Screen Dissipation | Pg2(max) | 5.0 W |
| Maximum Cathode Current | Ik(max) | 300 mA |
| Maximum Potential Heater/Cathode (DC) | Vh−k(max) | 300 V † |
† Provided that the cathode is positive.
All maximum ratings are Absolute values, not Design Centres.
Typical Operating Characteristics
| Parameter | Symbol | Value |
|---|---|---|
| Mutual Conductance (Transconductance) | gm | 14 mA/V * |
| Inner Amplification Factor | μg1,g2 | 5.3 * |
* Taken at Va = Vg2 = 150 V, Ia = 200 mA.
Series Regulator Application Data
| Parameter | Value |
|---|---|
| Anode Voltage (Va) | 150 V |
| Screen Voltage (Vg2) | 150 V |
| Control Grid Voltage (Vg1) | −10.0 V |
| Anode Current (Ia) | 200 mA |
| Screen Current (Ig2) | 10.0 mA |
| Transconductance (S) | 14.0 mA/V |
Inter-Electrode Capacitances
| Parameter | Symbol | Value |
|---|---|---|
| Grid/Earth (Input) | Cin | 23.0 pF |
| Anode/Earth (Output) | Cout | 8.0 pF |
| Anode/Grid | Ca,g1 | 0.85 pF |
"Earth" denotes the remaining earthy potential electrodes and heater joined to cathode.
Physical Dimensions
| Parameter | Value |
|---|---|
| Maximum Overall Length | 146 mm |
| Maximum Diameter | 54 mm |
| Maximum Seated Height | 133 mm |
| Approximate Nett Weight | 2½ oz |
| Approximate Packed Weight | 7 oz |
Construction Details
- Base: International Octal (IO8)
- Bulb: Clear glass
- Top Cap: American miniature (CT1) — Anode connection
- Mounting Position: Vertical preferred. If run horizontally, the axis AB must be on a horizontal plane.
- Designed for: Parallel operation
Pin Connections (International Octal Base — Bottom View)
| Pin | Connection | Symbol |
|---|---|---|
| Pin 1 | No connection | NC |
| Pin 2 | Heater | h |
| Pin 3 | No connection | NC |
| Pin 4 | Screen Grid | g2 |
| Pin 5 | Control Grid | g1 |
| Pin 6 | No connection | NC |
| Pin 7 | Heater | h |
| Pin 8 | Cathode | k |
| Top Cap | Anode | a |
Note the top-cap anode connection, which is a distinctive feature of the 12E1. This design isolates the high-voltage anode from the base pins, improving voltage standoff and reducing inter-electrode leakage — important for both regulator and audio applications.
Derived Parameters
From the datasheet values of μg1,g2 = 5.3 and gm = 14 mA/V, the approximate plate resistance (rp) in the screen-grid tetrode configuration can be estimated. However, it should be noted that the inner mu (μg1,g2) relates the control grid to the screen grid, not to the anode. The actual anode resistance in pentode/tetrode mode is typically much higher and varies significantly with operating point. Users should consult the characteristic curves on pages 3–6 of the datasheet for load-line analysis at their chosen operating conditions.
Applications and Usage
Original Intended Applications
The 12E1 was specifically designed as a series or shunt control valve in stabilised power packs. In this role, the tube acts as a variable resistance element in a feedback-controlled voltage regulation circuit. Key features that make it ideal for this application include:
- High maximum cathode current (300 mA): Allows regulation of substantial load currents
- High maximum anode voltage (800 V): Provides wide input-output voltage differential capability
- High transconductance (14 mA/V): Enables tight regulation with modest control voltage swings
- 35 W anode dissipation: Handles significant power dissipation across the series pass element
- Parallel operation capability: Multiple tubes can be paralleled for higher current requirements
- 300 V heater-cathode voltage rating: Essential for series-pass regulators where the cathode may sit at high potential above ground
Triode-Connected Operation
The datasheet includes characteristic curves for triode-connected operation (screen tied to anode), showing the tube's behaviour with anode voltages up to approximately 400 V and currents up to 400 mA. In triode mode, the 12E1 exhibits a 37-watt dissipation limit line (as shown on the triode anode characteristics curve on page 6 of the datasheet). This triode-connected mode is particularly relevant for audio applications, where many designers prefer the lower distortion characteristics of triode operation.
Military and Industrial Use
Under its CV345 designation, the 12E1 served in British military equipment, particularly in stabilised power supplies for radar systems, communications equipment, and instrumentation. The robust construction and conservative ratings ensured reliable operation under demanding conditions.
Sound Characteristics
The 12E1 was never designed as an audio tube, which makes its adoption by the audio community all the more interesting. Those who have built amplifiers around this tube report a distinctive and appealing sonic signature:
Triode-Connected Mode
- Warm and full-bodied midrange: The 12E1 in triode mode produces a rich, harmonically dense midrange that is often described as "lush" and "musical." The relatively low amplification factor (inner mu of 5.3) contributes to a presentation that is relaxed yet detailed.
- Excellent bass authority: With its ability to deliver up to 300 mA of cathode current and its robust beam tetrode construction, the 12E1 provides surprisingly strong and well-controlled bass response, particularly in single-ended configurations. The high current capability translates to excellent damping and grip on loudspeaker drivers.
- Smooth, non-fatiguing treble: The high-frequency response is generally described as sweet and extended without harshness. The beam tetrode structure, even in triode mode, tends to produce a gentle roll-off that many listeners find musically satisfying.
- Dynamic and punchy: The high transconductance of 14 mA/V means the tube responds quickly to signal demands, giving a sense of liveliness and dynamic contrast that some lower-gm tubes lack.
Ultralinear and Pentode/Tetrode Modes
- In ultralinear or full tetrode mode, the 12E1 delivers more power with increased efficiency, though with a slightly different harmonic distortion profile. The sound becomes more forward and assertive, with greater extension at frequency extremes.
- The beam-forming plates help suppress unwanted secondary emission effects, contributing to cleaner performance in the tetrode "knee" region compared to true pentodes.
General Sonic Character
Overall, the 12E1 is praised for its combination of power, finesse, and a certain "industrial strength" quality to the sound. It does not have the delicacy of a small-signal triode like a 300B, but it offers a muscular, engaging presentation that works exceptionally well with efficient loudspeakers. The tube's regulator heritage means it was built to handle wide current swings with stability — a characteristic that translates directly into excellent transient response and composure under dynamic musical passages.
Because the 12E1 was manufactured to tight industrial and military tolerances, matched pairs and quads tend to be very consistent, which benefits push-pull amplifier designs where balance between output tubes is critical for low distortion.
Equivalent and Substitute Types
| Type | Relationship | Notes |
|---|---|---|
| CV345 | Direct equivalent / identical | British military designation for the 12E1. Fully interchangeable with no modifications required. Same pinout, same ratings. |
The 12E1/CV345 is a relatively unique tube type, and there are no widely documented direct commercial substitutes from other manufacturers with identical characteristics. Some builders have compared it loosely to other high-current beam tetrodes such as the 807 or 1625, but these have different pinouts, different heater requirements, and different operating characteristics — they are not drop-in replacements.
The 12E1's combination of 6.3 V heater at 1.6 A, top-cap anode, octal base, and its specific transconductance and dissipation ratings make it a distinctive type. Any substitution with other tube types would require circuit redesign and should not be attempted as a simple swap.
Notable Characteristics
- Top-cap anode connection: The anode is brought out through an American miniature top cap (CT1), keeping the high-voltage anode connection physically separated from the low-level grid and cathode pins. This is advantageous in both regulator and audio applications for reducing parasitic coupling and improving voltage isolation.
- Exceptional heater-cathode voltage rating: The 300 V maximum heater-to-cathode voltage (with cathode positive) is unusually high and reflects the tube's regulator heritage, where the cathode may sit at a significantly elevated potential. For audio use, this provides generous safety margins.
- Designed for parallel operation: The datasheet explicitly states the tube is intended for parallel operation, meaning multiple 12E1s can be connected in parallel to increase current handling. This is a valuable feature for both high-current regulated supplies and for audio amplifiers where greater output power is desired.
- High maximum cathode current: At 300 mA maximum, the 12E1 can deliver substantial current, making it suitable for low-impedance, high-current output stage designs.
- 800 V maximum anode voltage: This very high voltage rating provides excellent headroom for audio designs and allows operation at a wide range of B+ voltages.
- Low anode-to-grid capacitance: At just 0.85 pF, the feedback capacitance from anode to control grid is very low, contributing to stability and good high-frequency performance.
- Robust military-grade construction: As a CV-rated tube, the 12E1 was built to withstand vibration, temperature extremes, and extended operation — qualities that translate to long service life in audio equipment.
- Clear glass envelope: Allows visual inspection of the internal structure and provides the aesthetic appeal valued by many audio enthusiasts. The glow of the heater and the visible beam-forming plates add to the visual experience of a tube amplifier.
- Grid current onset at approximately −1.0 V: As noted on the characteristic curves, grid current begins flowing at about Vg1 = −1.0 V. This is important for audio designers to ensure the control grid is biased sufficiently negative to avoid grid current distortion.
Usage in the Audio Community
The 12E1 has carved out a niche following among DIY tube audio enthusiasts, particularly in the UK and Europe where NOS stocks have been more readily available. Its adoption into audio service represents a classic case of creative repurposing — taking a tube designed for mundane power supply regulation and discovering its potential as a capable audio output device.
Single-Ended (SE) Amplifiers
The most common audio application for the 12E1 is in single-ended amplifiers, typically triode-connected (screen tied to anode). In this configuration, a single 12E1 per channel can deliver several watts of Class A power — enough to drive efficient loudspeakers such as horn-loaded designs, full-range drivers (Lowther, Fostex, etc.), or high-sensitivity vintage speakers. The high transconductance of 14 mA/V means that relatively modest driver stages can swing the 12E1 to full output, simplifying amplifier design.
A typical SE triode-connected design might operate the 12E1 at a B+ of 200–300 V with a bias current of 60–80 mA, yielding approximately 3–5 watts of single-ended Class A power. The 35 W anode dissipation limit provides comfortable headroom for such operating points.
Push-Pull Amplifiers
Pairs of 12E1s can be used in push-pull configurations, either in triode, ultralinear, or full tetrode mode. Push-pull operation can yield 15–25 watts or more depending on the operating mode and B+ voltage, making the 12E1 suitable for driving a wider range of loudspeakers. The tube's suitability for parallel operation (as stated in the datasheet) means that quad configurations (parallel push-pull) are also feasible for higher power requirements.
Driver Requirements
With an inner mu of 5.3 and grid current onset at approximately −1.0 V, the 12E1 requires a driver stage capable of providing a clean voltage swing of several tens of volts. Common driver tubes used with the 12E1 include the ECC82 (12AU7), ECC83 (12AX7), 6SN7, and various medium-mu triodes. Some designers use transformer-coupled or capacitor-coupled interstage arrangements to provide the necessary voltage swing while maintaining low source impedance to the grid.
Practical Considerations for Audio Use
- Top-cap wiring: The anode top-cap connection requires appropriate high-voltage wiring and a suitable top-cap connector. Builders should use quality silicone or PTFE-insulated wire rated for the operating voltage.
- Heater current: At 1.6 A per tube, the heater demand is substantial. A pair of 12E1s requires 3.2 A at 6.3 V from the heater supply. Power transformer selection must account for this.
- Output transformer matching: The optimal primary impedance depends on the operating mode and bias point. In triode mode at moderate currents, primary impedances in the range of 2–5 kΩ are typical for single-ended designs, though builders should perform load-line analysis using the characteristic curves provided in the datasheet.
- Bias arrangement: Both fixed bias and cathode (self) bias are used. The relatively low bias voltage required (around −10 V at 200 mA in the regulator application) makes cathode bias practical with modest cathode resistor values.
- Availability and cost: NOS 12E1/CV345 tubes remain available from specialist dealers and online marketplaces at reasonable prices compared to more fashionable audio tubes. Their industrial/military origins mean that many surviving examples are in excellent condition, often unused and in original packaging.
Community Projects and Recognition
The 12E1 has been featured in various DIY audio forums and publications, with builders sharing schematics, listening impressions, and construction details. It is particularly popular among enthusiasts who enjoy exploring unconventional tube types — those industrial and military valves that offer excellent performance at a fraction of the cost of "name brand" audio tubes like the KT88, EL34, or 300B. The tube's combination of high build quality, generous ratings, and appealing sonic character has earned it a loyal, if small, following in the global tube audio community.
The 12E1 represents an excellent entry point for builders interested in experimenting with beam tetrodes in audio service, offering a forgiving and robust platform for learning about tube amplifier design while delivering genuinely satisfying musical performance.
