1. Introduction and History
The CV345 is a British military-specification (Common Valve designation) beam tetrode originally designed for use as a series regulator in stabilised power supplies. Its commercial equivalent is the 12E1, and the tube was manufactured by prominent UK valve makers including Thorn AEI (Associated Electrical Industries) and STC (Standard Telephones and Cables). The CV numbering system was established by the UK Ministry of Defence to ensure interchangeability and quality control across different manufacturers — any valve carrying the CV345 designation had to meet identical performance parameters regardless of who produced it.
The 12E1 / CV345 emerged during the post-war era when the British military and telecommunications industries required robust, high-current beam tetrodes capable of handling significant power in voltage regulation circuits. Unlike most audio-oriented valves of the period, the CV345 was engineered for industrial and military reliability, with rugged construction, generous plate dissipation capability, and the ability to pass substantial anode currents. These very characteristics — originally intended for power supply regulation — have made the CV345 an object of fascination in the modern audio community, where its high transconductance, low plate resistance, and muscular current delivery translate into exceptional performance in single-ended amplifier designs.
Manufactured primarily in the United Kingdom from the 1950s through the 1970s, the CV345 was produced in relatively large quantities for government contracts. Today, NOS (New Old Stock) examples surface regularly from military surplus channels, often in excellent condition due to careful storage. The tube has developed a dedicated following among DIY audio enthusiasts and boutique amplifier builders who prize its unique combination of power-handling capability and sonic refinement.
2. Technical Specifications and Design
Heater / Filament
| Parameter | Value |
|---|---|
| Heater Voltage (Vh) | 6.3 V |
| Heater Current (Ih) | 1.6 A |
| Heater Type | Indirectly heated cathode |
Maximum Ratings
| Parameter | Value | Notes |
|---|---|---|
| Max Anode Voltage (Va max) | ~250–300 V | Value should be confirmed against full manufacturer datasheet; the series regulator operating point specifies 150 V |
| Max Screen Grid Voltage (Vg2 max) | ~200 V | Should be confirmed; operating point specifies 150 V |
| Max Anode Dissipation (Pa max) | ~30 W | Estimated from operating conditions (150 V × 200 mA = 30 W); confirm against datasheet |
| Max Screen Dissipation (Pg2 max) | ~3–4 W | Should be confirmed against full datasheet |
Typical Operating Conditions (Series Regulator Service)
| Parameter | Value |
|---|---|
| Anode Voltage (Va) | 150 V |
| Screen Grid Voltage (Vg2) | 150 V |
| Control Grid Voltage (Vg1) | −10.0 V |
| Anode Current (Ia) | 200 mA |
| Screen Grid Current (Ig2) | 10.0 mA |
| Transconductance (gm / S) | 14.0 mA/V |
Derived and Estimated Valve Parameters
| Parameter | Value | Notes |
|---|---|---|
| Transconductance (gm) | 14.0 mA/V | Verified from reference data |
| Amplification Factor (μ) | ~15–25 | Typical for beam tetrodes of this class; confirm against full datasheet |
| Plate Resistance (rp) | ~1–2 kΩ | Estimated from μ/gm; the low rp is characteristic of high-current beam tetrodes. Confirm against datasheet |
Note: The exceptionally high transconductance of 14 mA/V combined with the high anode current of 200 mA indicates a very low internal plate resistance, which is a defining characteristic of this valve and a key reason for its appeal in audio applications.

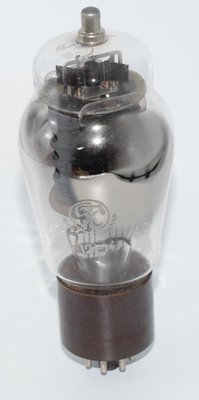

Physical Construction
| Feature | Detail |
|---|---|
| Base Type | Octal (International Octal, IO) |
| Envelope | Glass, ST-shape or straight-sided tubular (varies by manufacturer) |
| Mounting | Vertical or horizontal (check specific manufacturer recommendations) |
| Construction | Beam tetrode with beam-forming plates |
Pin-Out (Octal Base)
The CV345 / 12E1 uses the standard octal base. The typical pin configuration is as follows:
| Pin | Connection |
|---|---|
| Pin 1 | No Connection (NC) or Internal Shield |
| Pin 2 | Heater |
| Pin 3 | Anode (Plate) |
| Pin 4 | Screen Grid (g2) |
| Pin 5 | Control Grid (g1) |
| Pin 6 | No Connection (NC) |
| Pin 7 | Heater |
| Pin 8 | Cathode |
Important: The pin-out listed above is the commonly referenced configuration for the 12E1 / CV345. However, builders should always verify the pin-out against the specific manufacturer's datasheet before wiring, as minor variations may exist. The octal key provides orientation.
3. Applications and Usage
Original Intended Applications
- Series Voltage Regulation: The CV345 was primarily designed as a series pass element in stabilised power supplies. Its ability to handle 200 mA of anode current at moderate voltages, combined with its high transconductance of 14 mA/V, made it ideal for fast-responding, tightly regulated DC supplies used in military electronics, radar systems, and telecommunications equipment.
- Current Regulation: The beam tetrode characteristics and high gm also suited the valve for constant-current source applications.
- Industrial Control: Used in various industrial electronic control circuits where a robust, high-current amplifying element was required.
Modern Applications
- Single-Ended (SE) Audio Amplifiers: The CV345 has found a second life as an output tube in single-ended triode-connected or ultralinear amplifier designs. Its high current capability and low plate resistance make it exceptionally well-suited to driving loudspeakers through output transformers.
- Headphone Amplifiers: The tube's characteristics are well-matched to high-quality headphone amplifier designs, where its low output impedance (when triode-connected) provides excellent damping and control.
- Regulated Power Supplies for Audio: Ironically returning to its original purpose, the CV345 is used in high-end audio power supply designs where valve-regulated supplies are preferred for their sonic characteristics.
- Driver Stage Applications: In some designs, the CV345 serves as a powerful driver for larger output tubes, where its high transconductance provides ample voltage swing with low distortion.
4. Sound Characteristics
The CV345 / 12E1 has earned a distinctive reputation in the audio community for its sonic qualities, which are often described as combining the best attributes of directly heated triodes with the practicality of an indirectly heated beam tetrode. Here is how audiophiles and engineers typically characterise its sound:
Tonal Balance and Timbre
- Rich, full-bodied midrange: The CV345 is frequently praised for a lush, harmonically dense midrange that brings vocals and acoustic instruments to life. The midrange is often described as "present" without being forward or aggressive.
- Warm but not woolly bass: Thanks to its very low plate resistance and high transconductance, the CV345 delivers bass performance that is unusually tight and controlled for a valve of its era. When triode-connected, the low rp provides excellent damping factor through the output transformer, resulting in bass that has both warmth and definition.
- Extended, smooth treble: The high-frequency response is typically described as airy and detailed without the grain or harshness sometimes associated with pentode or beam tetrode operation. When run in triode mode, the top end takes on a particularly refined, silky quality.
Dynamic Characteristics
- Excellent micro-dynamics: The high gm of 14 mA/V means the tube responds quickly and sensitively to small signal variations, revealing subtle dynamic shadings in music that lesser tubes may obscure.
- Authoritative macro-dynamics: The 200 mA operating current gives the CV345 a sense of effortless power and headroom that belies the modest wattage of typical SE amplifier designs using this tube. Transients are handled with conviction.
- Low distortion character: The harmonic distortion profile is dominated by even-order harmonics (particularly second harmonic), especially when triode-connected. This gives the tube its characteristic "musical" quality — distortion products are consonant and pleasing rather than harsh.
Spatial Presentation
- Wide, deep soundstage: Amplifiers built around the CV345 are often noted for their ability to create a convincing three-dimensional soundstage with good depth layering.
- Precise imaging: The low output impedance contributes to tight speaker control, which in turn supports precise image placement within the soundstage.
Overall Character
The CV345 is often compared favourably to more exotic and expensive directly heated triodes (DHTs). Its sound is frequently described as having a "directness" and "immediacy" that is reminiscent of 300B or 2A3 amplifiers, but with better bass control and a more modern, extended frequency response. It occupies a sweet spot between the romantic warmth of classic triodes and the precision of modern solid-state amplification. Many listeners describe the overall presentation as "honest" and "engaging" — musical without excessive coloration.
5. Equivalent or Substitute Types
| Type | Relationship | Notes |
|---|---|---|
| 12E1 | Direct equivalent (commercial designation) | The 12E1 is the commercial type number for the CV345. They are identical in all respects — electrically, physically, and in pin-out. Fully interchangeable without modification. |
Important Notes on Substitution
The CV345 / 12E1 is a somewhat unique valve in its combination of characteristics (high current, high gm, beam tetrode, octal base). There are no other widely recognised direct substitutes beyond the 12E1 commercial equivalent. Some builders have experimented with other high-current beam tetrodes in similar circuit topologies, but these are not pin-compatible or electrically identical and would require circuit redesign:
- 6AS7 / 6080: Sometimes mentioned in similar contexts (high-current, low-voltage regulator service), but this is a dual triode, not a beam tetrode, with completely different characteristics and pin-out. Not a substitute.
- 6L6 / 5881 / KT66: While these are octal beam tetrodes, they have significantly different operating parameters (lower gm, different bias requirements, different current handling). Not a drop-in substitute.
- EL34 / 6CA7: Another octal beam tetrode/pentode, but again with very different electrical characteristics. Not interchangeable.
The safest approach is to use only genuine CV345 or 12E1 valves. The good news is that NOS stock remains reasonably available from UK military surplus sources.
6. Notable Characteristics
Exceptional Transconductance
At 14 mA/V, the CV345 has a remarkably high transconductance for a valve of its type and era. This is significantly higher than most common audio beam tetrodes (the 6L6, for example, typically offers around 5–6 mA/V). This high gm translates directly into greater gain, lower distortion, and superior linearity in audio applications.
High Current Capability
The 200 mA anode current rating is exceptional and places the CV345 in a class typically reserved for power supply regulator tubes and transmitting valves. In audio service, this means the tube can deliver substantial power into output transformers, and the high quiescent current ensures operation in the most linear region of the tube's characteristics.
Military-Grade Construction
As a CV-designated valve, the 12E1 / CV345 was manufactured to stringent military quality standards. This typically means:
- Tighter manufacturing tolerances than commercial equivalents
- More rigorous testing and quality control
- Enhanced mechanical robustness (resistance to vibration and shock)
- Longer expected service life
- Better consistency between samples
Versatile Operating Modes
The CV345 can be operated in several configurations:
- Beam tetrode mode: Maximum power output with screen grid at rated voltage
- Triode-connected: Screen grid tied to anode — reduces power output but significantly lowers distortion and output impedance, preferred by many audiophiles
- Ultralinear: Screen grid connected to a tap on the output transformer primary — a compromise between tetrode efficiency and triode linearity
Low Operating Voltages
The CV345 operates at relatively low anode voltages (150 V in its rated conditions) compared to most audio output tubes. This is a significant safety advantage for DIY builders and also simplifies power supply design. Lower voltages also mean less stress on output transformer insulation and other components.

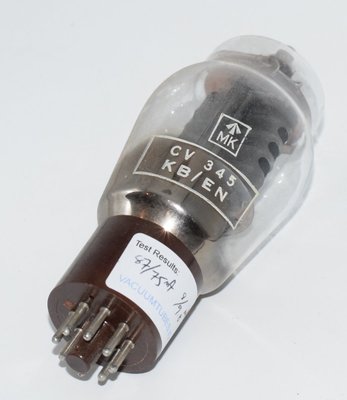

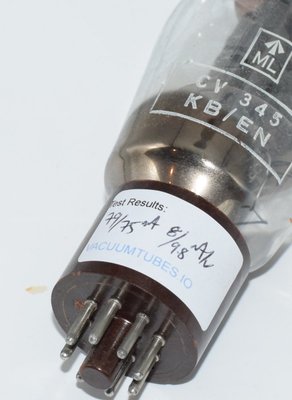

Manufacturer Variations
NOS CV345 / 12E1 tubes are found from several UK manufacturers, primarily:

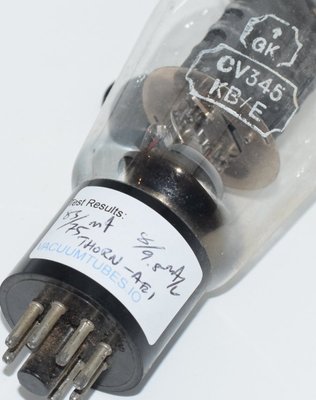

- Thorn AEI (Associated Electrical Industries): One of the most commonly encountered manufacturers. AEI was formed from the merger of several historic British electrical companies.
- STC (Standard Telephones and Cables): Another major UK producer, part of the ITT group. STC-manufactured examples are well-regarded for consistency.
- Mullard: Some examples may carry Mullard branding or factory codes, as Mullard was a major supplier to the UK military.
While all CV345-designated tubes must meet the same specification, subtle sonic differences between manufacturers are reported by audiophiles — a common phenomenon in the valve audio world.
7. Usage in the Audio Community
The Rediscovery
The CV345 / 12E1 was "rediscovered" by the audio community in the early 2000s as DIY valve amplifier builders began exploring unconventional tubes — particularly military surplus types that offered exceptional performance at modest cost. The tube's combination of high transconductance, high current capability, low operating voltage, and rugged construction made it an immediately attractive candidate for single-ended amplifier designs.
Popular Circuit Topologies
- Single-Ended Triode-Connected: The most popular audio application. The CV345 is wired with its screen grid connected to the anode, converting it to a triode. In this configuration, the tube typically delivers 2–4 watts of single-ended Class A power — sufficient for high-efficiency loudspeakers. The low plate resistance in triode mode provides excellent damping and speaker control.
- Single-Ended Beam Tetrode / Ultralinear: For those seeking more power, the CV345 can be run in its native beam tetrode mode or in ultralinear configuration, potentially delivering 5–8 watts in single-ended Class A. The trade-off is slightly higher distortion and output impedance compared to triode mode.
- Push-Pull Configurations: While less common, pairs of CV345s have been used in push-pull designs where their high current capability and transconductance yield impressive power output for the tube's size.
- Headphone Amplifiers: The CV345's characteristics make it an excellent choice for OTL (Output Transformer-Less) or transformer-coupled headphone amplifiers, where its low plate resistance and high current provide authoritative drive for a wide range of headphone impedances.
Pairing with Driver Tubes
Due to the relatively modest grid bias of −10 V at the rated operating point, the CV345 is easy to drive and pairs well with a wide variety of small-signal driver tubes. Popular choices in the audio community include:
- ECC83 / 12AX7: For designs requiring significant voltage gain in the driver stage
- ECC82 / 12AU7: A popular choice for its linearity and moderate gain
- 6SN7: An octal dual triode favoured for its sonic qualities and ability to provide adequate voltage swing
- EF86 / 6267: A low-noise pentode sometimes used as a single-stage driver
Output Transformers
The CV345's low plate resistance and high operating current place specific demands on output transformer selection. Transformers designed for the tube typically feature:
- Low primary impedance (typically 600 Ω to 2 kΩ depending on operating mode)
- High current-handling capability in the primary winding (to handle the 200 mA DC bias current without saturation)
- Air-gapped cores to prevent core saturation from the high DC current
Quality output transformers from manufacturers such as Hashimoto, Lundahl, Sowter, and various boutique winders are commonly specified in CV345 amplifier projects.
Community Projects and Commercial Amplifiers
The CV345 has been featured in numerous DIY amplifier projects published on audio forums such as diyAudio, and in various online communities dedicated to valve audio. Detailed build threads with schematics, component lists, and listening impressions are readily available. A small number of boutique amplifier manufacturers have also produced commercial designs around the 12E1 / CV345, though these tend to be limited-production items.
Availability and Pricing
As of the mid-2020s, NOS CV345 / 12E1 tubes remain available through specialist valve dealers, online auction sites, and military surplus outlets. Pricing is generally moderate compared to more fashionable audio tubes — a consequence of the tube's relative obscurity outside the cognoscenti of the DIY audio world. This represents excellent value given the tube's exceptional build quality and sonic performance. However, as awareness grows, prices have been gradually increasing, and builders are advised to secure stock while availability remains good.
Matching and Testing
For single-ended applications, individual tube quality matters more than matching. However, for push-pull designs, matched pairs are desirable. The CV345's military-grade manufacturing tolerances mean that NOS examples tend to measure more consistently than many commercial audio tubes, making close matching easier to achieve. Standard valve testers capable of handling the tube's current requirements can be used, though some vintage testers may not have specific settings for the 12E1 — in such cases, testing at the rated operating conditions (150 V anode, 150 V screen, −10 V grid) and measuring for the expected 200 mA anode current and 14 mA/V transconductance is recommended.
