1. Introduction and History
The KT88 is one of the most celebrated beam power tetrodes ever manufactured, widely regarded as the gold standard for high-power audio amplification. Developed and introduced by the General Electric Company (GEC) of England — operating under the Marconi-Osram Valve (MOV) division — the KT88 was first released in 1956. The "KT" designation stands for "Kinkless Tetrode," referring to the tube's beam-forming plate structure that eliminates the characteristic kink found in the anode curves of conventional tetrodes, resulting in smoother, more linear operation.
The KT88 was designed as a high-power audio output tube capable of delivering substantial power with low distortion. At the time of its introduction, it represented a significant leap in power tube technology, offering 42 watts of maximum plate dissipation in a single envelope — a remarkable figure for the era. GEC engineered the tube for professional audio equipment, public address systems, and high-fidelity amplifiers, and it quickly became the tube of choice for premium amplifier designs.
The original GEC KT88 became legendary for its build quality, featuring heavy glass envelopes, gold-plated pins, and meticulous internal construction. When GEC ceased production in the late 1980s, original examples became highly sought-after collector's items, with NOS (New Old Stock) GEC KT88s commanding extraordinary prices on the vintage market. Today, the KT88 is manufactured by several companies including JJ Electronic (Slovakia), Shuguang and Psvane (China), Genalex/Gold Lion (reissue, manufactured in Russia), Tung-Sol (reissue), and Tube Amp Doctor (TAD), among others.
The KT88 has earned an enduring place in audio history, powering iconic amplifier designs from manufacturers such as Dynaco, McIntosh, Marshall, and many boutique high-fidelity builders. Its combination of high power capability, excellent linearity, and robust construction has ensured its continued relevance for over six decades.
2. Technical Specifications and Design
The following specifications are based on the original GEC KT88 datasheet. Note that modern reissue tubes from various manufacturers may have slightly different characteristics, and users should always consult the specific manufacturer's datasheet for the production variant they are using.
Heater / Filament
| Heater Voltage (Vf) | 6.3 V |
| Heater Current (If) | 1.6 A |
Maximum Ratings (Absolute Maximum Values)
| Maximum Plate Voltage (Va max) | 800 V |
| Maximum Screen Grid Voltage (Vg2 max) | 600 V |
| Maximum Plate Dissipation (Pa max) | 42 W |
| Maximum Screen Grid Dissipation (Pg2 max) | 12 W (some sources cite 11–12 W) |
| Maximum Cathode Current (Ik max) | 230 mA |
| Peak Cathode Current | 450–500 mA (depending on duty cycle) |
Typical Operating Characteristics (Triode-Connected or Beam Tetrode Mode)
The following values are representative of typical beam tetrode operation. Exact values vary with operating point:
| Amplification Factor (μ) | Approximately 8 (typically 7–8 depending on operating conditions) |
| Transconductance (gm) | Approximately 11 mA/V (11,000 µmhos / µS) |
| Plate Resistance (rp) | Approximately 12–15 kΩ (in beam tetrode mode; significantly lower in triode mode) |
| Control Grid Bias Range (Vg1) | Typically −15 V to −50 V depending on plate and screen voltages; consult load-line charts for specific operating points |
Note: The amplification factor, transconductance, and plate resistance are interrelated (μ = gm × rp) and vary with the chosen operating point. The values above are typical for common Class AB1 operating conditions as specified in the GEC datasheet. In triode-connected mode, the plate resistance drops substantially (to approximately 1–2 kΩ), and the amplification factor and transconductance values shift accordingly.
Typical Class AB1 Push-Pull Operation (Per Pair)
| Plate Voltage | 500 V |
| Screen Voltage | 500 V (may be lower in some designs) |
| Grid Bias | Approximately −38 to −42 V (fixed bias) |
| Plate-to-Plate Load | 6.6 kΩ (typical) |
| Power Output | ~100 W (ultralinear); ~50–65 W (triode mode) |
Physical Characteristics
| Base Type | Octal (International Octal, 8-pin) |
| Envelope Type | Large shouldered glass (ST-16 / similar bulbous shape); approximately 160 mm (6.3") tall overall |
| Envelope Diameter | Approximately 51 mm (2") |
| Mounting Position | Any (designed for vertical base-down, but operable in other orientations) |
Pin-Out (Octal Base — Bottom View)
| Pin | Connection |
|---|---|
| Pin 1 | No Connection (or internal shield on some variants) |
| Pin 2 | Heater |
| Pin 3 | Plate (Anode) |
| Pin 4 | Screen Grid (Grid 2) |
| Pin 5 | Control Grid (Grid 1) |
| Pin 6 | No Connection |
| Pin 7 | Heater |
| Pin 8 | Cathode |
Note: This pin-out is standard for the KT88 and is shared with the 6550, EL34 (in most configurations), and other octal beam tetrodes/pentodes in this family. Always verify pin connections against the specific manufacturer's datasheet before installation.
3. Applications and Usage
The KT88 was designed primarily for audio frequency power amplification, and this remains its dominant application. Key uses include:
- High-Fidelity Stereo Amplifiers: The KT88 is a cornerstone of high-end tube amplifier design. Its high power capability and excellent linearity make it ideal for driving loudspeakers with authority and finesse. A push-pull pair of KT88s in ultralinear configuration can deliver approximately 100 watts, while even a single-ended design can produce meaningful power output.
- Professional Audio Equipment: PA systems, studio monitor amplifiers, and broadcast equipment have historically used the KT88 for its reliability and power handling.
- Guitar Amplifiers: While the EL34 and 6L6 are more commonly associated with guitar amplification, the KT88 is used in several high-power guitar amplifier designs, notably certain Marshall models (such as the Marshall Major) and various boutique amplifiers. Its clean headroom and tight low-end response are valued by players seeking powerful, articulate tone.
- Bass Guitar Amplifiers: The KT88's exceptional low-frequency authority and high power output make it particularly well-suited for bass amplification, where clean, powerful bass reproduction is essential.
- Organ Amplifiers: The tube's ability to reproduce deep bass frequencies with minimal distortion made it popular in amplifiers for electronic organs, including certain Leslie speaker cabinets.
- Industrial and Regulated Power Supply Applications: Due to its high voltage and current ratings, the KT88 has also found use as a series pass element in regulated power supplies, though this is a secondary application.
4. Sound Characteristics
The KT88 occupies a distinctive sonic territory that has made it a favorite among audiophiles and amplifier designers. Its tonal character is frequently described in the following terms:
- Powerful and Authoritative Bass: The KT88 is renowned for its deep, controlled, and muscular bass response. Unlike some power tubes that can sound soft or bloated in the low frequencies, the KT88 delivers bass with grip, definition, and slam. This is one of its most universally praised characteristics.
- Wide Bandwidth and Extended Frequency Response: The KT88 exhibits excellent extension at both frequency extremes. The treble is typically described as open, airy, and detailed without being harsh or brittle. This wide bandwidth contributes to an overall sense of transparency and realism.
- Neutral to Slightly Warm Tonal Balance: Compared to the EL34, which is often described as having a lush, romantic midrange, the KT88 is considered more neutral and balanced. It does not impose a strong coloration on the signal, making it a favorite for audiophiles who prioritize accuracy. However, it is not clinical — there is a subtle warmth and body that distinguishes it from solid-state amplification.
- Excellent Dynamics and Transient Response: The KT88's high transconductance and low distortion characteristics translate into impressive dynamic range and fast transient response. It handles sudden dynamic shifts — from pianissimo to fortissimo — with composure and impact.
- Clean Headroom: With 42 watts of plate dissipation per tube, the KT88 offers generous headroom before the onset of clipping. When it does clip, the distortion is generally smooth and progressive, characteristic of beam tetrode behavior.
- Triode vs. Ultralinear vs. Pentode Modes: The KT88's sonic character shifts meaningfully depending on the operating mode. In triode mode, it takes on a warmer, more liquid character with reduced power output but lower distortion. In ultralinear mode, it offers an excellent balance of power and refinement. In full pentode/beam tetrode mode, it delivers maximum power with a slightly more forward, energetic presentation.
- Comparison to the 6550: Audiophiles often compare the KT88 and 6550, as they are closely related types. The KT88 is generally perceived as having a slightly richer harmonic palette and more refined treble, while the 6550 is sometimes described as leaner and more analytical. However, these differences are subtle and highly dependent on the specific manufacturer and vintage of each tube.
In guitar amplifier applications, the KT88 is valued for its clean, powerful tone with tight low end and sparkling highs. It provides more headroom than the EL34, making it suitable for players who want clean power at high volumes or a tight, controlled overdrive character when pushed.
5. Equivalent or Substitute Types
The KT88 has several closely related types that can serve as substitutes in many circuits, but care must be taken with biasing and operating conditions:
Direct Equivalents / Close Substitutes
| Type | Notes |
|---|---|
| 6550 / 6550A | The closest American equivalent. The original Tung-Sol 6550 was rated at 35 W plate dissipation, but the improved 6550A is rated at 42 W — identical to the KT88. The 6550 shares the same octal pin-out and is directly interchangeable in virtually all circuits. Bias adjustment may be needed when swapping between KT88 and 6550 types due to slight differences in transconductance and bias characteristics. Many amplifiers (notably McIntosh designs) were designed around the 6550 and work equally well with KT88s. |
| KT90 | A higher-power derivative (rated at approximately 50 W plate dissipation) manufactured by Ei (Yugoslavia/Serbia). Pin-compatible with the KT88 but physically taller. Can be used as a substitute in many circuits, but the higher ratings and different characteristics may require bias adjustment. Not all amplifiers can physically accommodate the taller envelope. |
| KT120 | A modern high-power beam tetrode (approximately 60 W plate dissipation) manufactured by New Sensor (Tung-Sol brand). Pin-compatible with the KT88 but significantly larger physically. Can substitute in some amplifiers, but the higher current draw and different operating characteristics mean the amplifier must be verified as compatible — not a drop-in replacement in all cases. Heater current is higher (1.8 A vs. 1.6 A), which may stress power supplies not designed for it. |
| KT150 | An even higher-power modern type (approximately 70 W plate dissipation). Same pin-out but much larger bottle. Only suitable as a substitute in amplifiers specifically designed or verified to accommodate it. Not a universal drop-in replacement. |
Partial Substitutes (With Caveats)
| Type | Notes |
|---|---|
| EL34 / 6CA7 | While the EL34 shares the same octal base and similar pin-out, it is a true pentode (not a beam tetrode) with different electrical characteristics and a lower plate dissipation rating (25 W). Many amplifiers are designed to accept both KT88 and EL34 tubes with appropriate bias adjustment, but they are not electrically identical. The EL34 has a different screen grid current characteristic, and swapping without proper bias adjustment can damage tubes or the amplifier. Only substitute if the amplifier manufacturer explicitly supports both types. |
Important: When substituting any tube type, always verify that the amplifier's bias circuit can accommodate the different tube's characteristics, and re-bias the amplifier accordingly. Pin compatibility does not guarantee safe or optimal operation.
6. Notable Characteristics
- Beam-Forming Plates: The KT88 uses internal beam-forming plates (beam confining electrodes) rather than a suppressor grid to direct electron flow and suppress secondary emission. This "kinkless" design results in smoother, more linear plate characteristics compared to conventional tetrodes, contributing to lower distortion and more predictable behavior across the operating range.
- Exceptional Linearity: The KT88's plate curves are remarkably linear and evenly spaced, making it an excellent candidate for both Class A and Class AB amplifier designs. This linearity reduces the need for heavy negative feedback, which many audiophiles consider beneficial to sound quality.
- Robust Construction: The original GEC KT88 was built to exacting standards with heavy glass envelopes, carbonized screens to reduce secondary emission, and gold-plated pins. This robust construction contributed to long service life and consistent performance. Modern reissues vary in build quality, but the best examples (such as the Gold Lion reissue and TAD KT88-STR) strive to approach the original's standards.
- High Power in a Single Envelope: At 42 watts plate dissipation, the KT88 was one of the most powerful audio output tubes available at the time of its introduction. A push-pull pair can deliver 100 watts or more in ultralinear configuration, making it possible to build very powerful amplifiers with relatively few output tubes.
- Ultralinear Operation: The KT88 is particularly well-suited to ultralinear (distributed load) operation, where the screen grid is connected to a tap on the output transformer primary (typically at 40–43% of the total winding). This mode offers an excellent compromise between the low distortion of triode operation and the high power of beam tetrode operation, and it has become the most popular operating mode for KT88-based hi-fi amplifiers.
- Collector's Value: Original GEC-manufactured KT88s (identifiable by their distinctive markings, heavy glass, and construction details) are among the most valuable and sought-after audio tubes in existence. Matched pairs of genuine NOS GEC KT88s can command prices of $1,000 or more, reflecting both their rarity and their reputation for exceptional sonic performance.
- Sensitivity to Operating Conditions: While the KT88 is a robust tube, it is sensitive to screen grid voltage and dissipation. Exceeding the screen dissipation rating (12 W) can lead to rapid tube failure. Proper bias setting is essential for longevity and optimal performance.
7. Usage in the Audio Community
The KT88 holds a position of enormous prestige in the audio community, spanning both high-fidelity and musical instrument applications:
High-Fidelity and Audiophile Amplifiers
The KT88 is arguably the most popular power tube in high-end tube amplifier design. It is the output tube of choice for many of the world's most respected amplifier manufacturers, including:
- McIntosh: The legendary MC275 amplifier, originally designed around the 6550, is frequently used with KT88s and many owners prefer the KT88's sonic character in this circuit.
- Audio Research: Many Audio Research amplifiers use the 6550/KT88 family, and the company has long recommended both types.
- Dynaco / Dynakit: The Dynaco Mark III and ST-70 (with appropriate modifications) can use KT88s to excellent effect.
- Primaluna, Line Magnetic, Cayin, Willsenton: Many modern Chinese and European manufacturers have built their flagship amplifiers around the KT88, recognizing its combination of power, linearity, and sonic refinement.
In the audiophile community, the KT88 is often the tube of choice for listeners who prioritize dynamic impact, bass authority, and overall neutrality. It is particularly favored for driving full-range loudspeakers and demanding low-impedance loads, where its high current capability and power reserves are advantageous.
Guitar and Bass Amplifiers
In the guitar world, the KT88 is associated with high-power, clean-headroom amplifier designs. Notable examples include:
- Marshall Major: The 200-watt Marshall Major used KT88s to achieve its massive power output, and it became associated with artists who needed extreme volume and clean headroom.
- Hiwatt: Some Hiwatt amplifier models used or could accommodate KT88s.
- Boutique Builders: Many modern boutique amplifier builders offer KT88-based designs for players seeking maximum clean power and tight, articulate tone.
Bass players particularly appreciate the KT88 for its ability to reproduce low frequencies with power and definition, and several bass-specific amplifier designs are built around this tube.

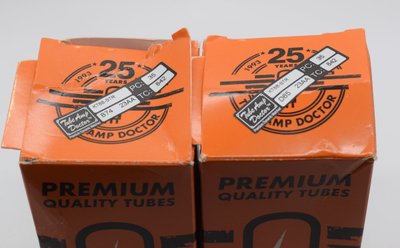

The TAD KT88-STR
The KT88-STR TAD Redbase is a selected and tested version offered by Tube Amp Doctor (TAD), a respected German tube supplier. TAD's selection process involves testing each tube for key parameters including transconductance, plate current, and matching accuracy. The "STR" designation indicates a tube selected for professional and demanding applications, and the "Redbase" refers to the distinctive red-colored base used for visual identification. TAD-selected tubes are popular among both audiophile amplifier users and professional musicians who require consistent, reliable performance and closely matched tube sets.
Tube Rolling and Comparisons
"Tube rolling" — the practice of swapping different tube brands and vintages to explore sonic differences — is a popular pursuit among KT88 users. The audio community has developed extensive lore around the sonic differences between various KT88 manufacturers:
- Original GEC KT88: Considered the ultimate reference — rich, detailed, and three-dimensional with exceptional bass and treble extension. Extremely rare and expensive.
- Gold Lion / Genalex (Reissue): Widely regarded as one of the best modern reissues, offering a refined, detailed sound that approaches the character of the original GEC.
- Shuguang KT88-98 / KT88-Z: Chinese-made tubes that offer good value and a warm, full-bodied sound. Quality can vary between production runs.
- JJ KT88: A Slovak-made option known for reliability and a slightly warmer, darker tonal balance.
- Psvane KT88: Chinese premium tubes that aim for a high-end sound with good detail and dynamics.
- TAD KT88-STR: Selected for consistency and reliability, favored by professionals and demanding users.
The KT88 remains one of the most actively produced and widely used power tubes in the world. Its combination of high power, excellent linearity, robust construction, and superb sonic characteristics ensures that it will continue to be a cornerstone of tube amplifier design for the foreseeable future. Whether in a vintage McIntosh receiver, a modern audiophile monoblock, or a thundering guitar amplifier, the KT88 delivers performance that has earned it a permanent place in the pantheon of great vacuum tubes.
